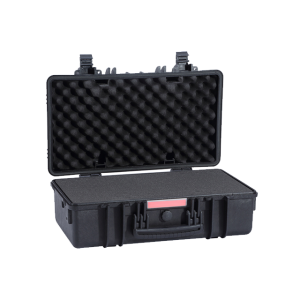

512717 Military Waterproof Case

Short Description:

Waterproof capability up to a depth of 1 meter for 30 minutes.

A robust construction with a fully customizable foam interior.

Complete protection from dust.

A manual pressure relief valve that enables gradual pressure equalization.

A seal design that ensures IP67 level protection.

Resistance to impact and shockproofing.


Product Detail

Product Tags

OVERVIEW

With the sturdy Model 512717, you can transport heavy items anywhere. The standard foam used is PU, and it is also available with accessories such as soft dividers to organize smaller items. This hard case is built to withstand any condition and is shock-proof to prevent damage.

● Dustproof, impact-resistant, and rugged heavy-duty construction.

● Easy-open double-throw latches for shockproof security.

● Comfortable rubber-wrapped handle for easy carrying.

● Features a lock hole for added security.

● O-ring seal in the lid ensures the case is watertight.

● A pressure relief valve allows for the gradual and safe equalization of pressure inside and out.

● Customizable pick-and-pluck foam interior for organizing contents.

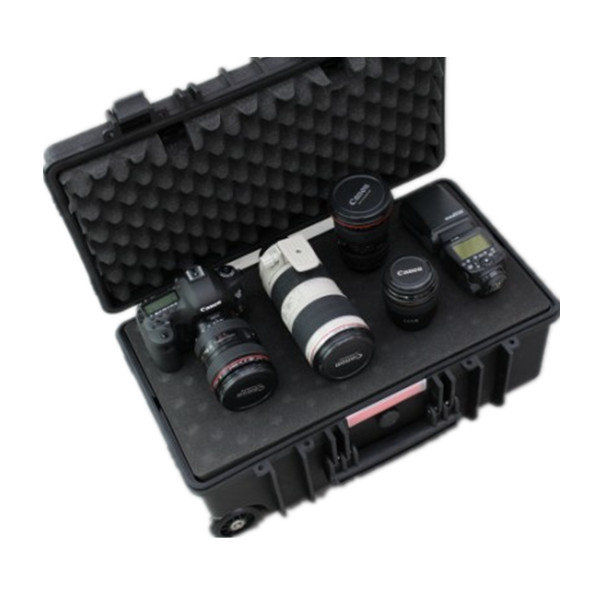

camera carrying case
hard tool case
tool case with divider

INTRODUCTION

What is waterproof IP 67?

IP67 is a standard for dust and water resistance. IP67 means that the hard case is completely dustproof and can be immersed in water for 30 minutes at a depth of no more than 1 meter without being damaged. Generally, IP67 standard devices are suitable for outdoor use or working in humid environments.

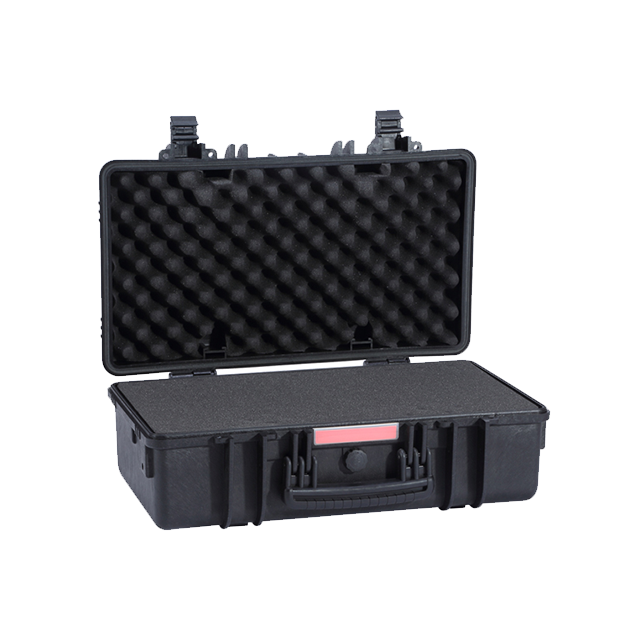

512717 military waterproof case

SPECS

DIMENSION

● Item: 512717

● External Dim.(L*W*D): 551.5*346*197.8mm(21.71*13.62*7.79inch)

● Internal Dim.(L*W*D): 520*277*172mm(20.47*10.9*6.79inch)

MEASUREMENTS

● Lid Depth: 49mm(1.93inch)

● Bottom Depth: 123mm(4.84inch)

● Total Depth: 325mm(12.8inch)

● Int. Volume: 23.7L

● Padlock Hole Diameter: 7mm

WEIGHT

● Weight with Foam: 4.5kg/9.9lb

● Weight Empty: 4.1kg/9.0lb

MATERIALS

● Body Material: PP+fiber

● Latch Material: PP

● O-Ring Seal Material: rubber

● Pins Material: stainless steel

● Foam Material: PU

● Handle Material: PP

● Casters Material: PP

● Retractable Handle Material: PP

OTHERS

● Foam Layer: 3

● Latch Quantity: 2

● TSA Standard: yes

● Casters Quantity: no

● Temperature: -40°C~90°C

● Warranty: lifetime for body

● Available Service: customized logo, insert, color, material and new items

PACKAGES

● Packing Way: one in a carton

● Big Carton Dimension: 57*36*22cm

● Gross Weight: 5.15kg

TIME

● Standard Box Sample: around 5days, normally it is in stock.

● Logo Sample: around one week.

● Customized Inserts Sample: around two week.

● Customized Color Slip Sample: around one week.

● Open New Mold Time: around 60 days.

● Bulk Production Time: around 20 days.

● Shipping Time: around 12 days for by air, 45-60 days for by sea.

SHIPMENT

● Available to appoint a forwarder to pick up the goods from our factory.

● Available to use our freight forwarder for door-to-door shipment via express or sea freight.

● Available to request us to deliver the goods to your shipping agent's warehouse.

DOCUMENTS

pdf

Dry Heat Certificate

pdf

Dust Certificate

pdf

IP67 Certificate

pdf

IP67 Certificate

APPLICATION

electronic plastic cases

Product Application

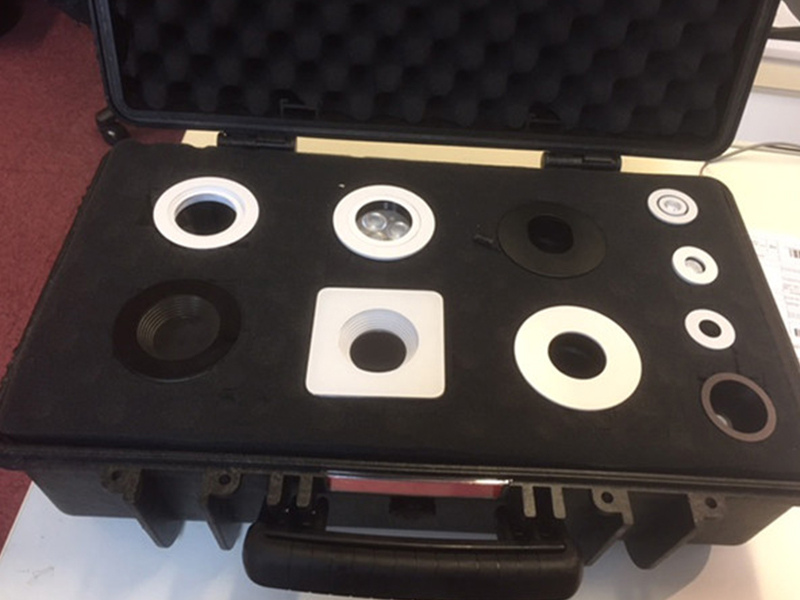

plastic tool cases
